This HowTo does not explain every step for the installation of Kimai on a Synology NAS with DSM 6, but rather concentrates on the differences from the default installation.

ATTENTION: This manual seems to be outdated and not working with DSM 7 anymore. Until this guide will be updated, there is a PDF installation documentation in german, provided by the community user Wolfgang 👍🏻

Important to know

You need to prefix all PHP related commands with php73, for example:

php73 composer.phar install --no-dev --optimize-autoloader

Or run a console command:

php73 bin/console kimai:version

The webserver user is called http and not www-data.

The database connection uses a socket instead of a port.

After creating the VirtualHost the DSM changes file ownership, so you might be forced to use sudo or switch to the root account for multiple commands.

Installation process

Clone Kimai as described in the main installation docs. If no git is installed, you can use the method described under the “updates” section.

This example uses the path /volume1/web/kimai2

Then download and install composer. Now install all dependencies:

php73 composer.phar install --no-dev --optimize-autoloader

Create a database

Use phpMyAdmin or the console (if you are familiar with it) to create a new database and database user.

Do not add special characters to the password that needs to be url encoded, rather use a longer password. Synology seems to have strict password rules, use the minus - if you are forced to use a special character, otherwise stick with lower and uppercase character and numbers.

.env file and database connection

Synology ships a MariaDB which is configured to use a socket connection and runs on a different port, therefore the connection string in your .env file could look different from the one used in the default installation docs:

DATABASE_URL="mysql://kimai2:password@localhost:3307/kimai2?unix_socket=/run/mysqld/mysqld10.sock"

BTW: You find the MariaDB executable at /volume1/@appstore/MariaDB10/usr/local/mariadb10/bin.

After editing the .env file, install Kimai:

php73 bin/console kimai:install -n

Webserver (nginx) configuration

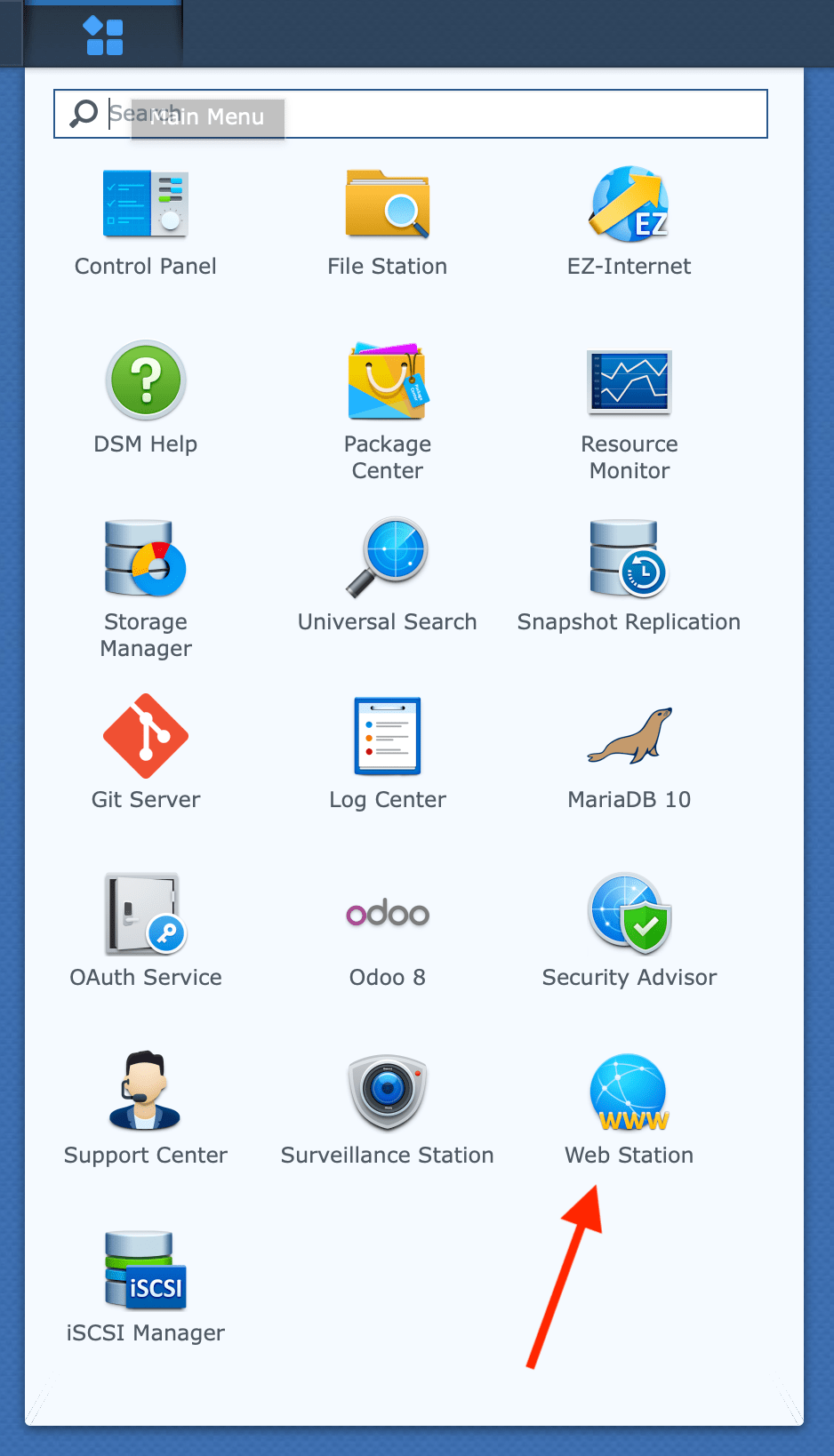

Start by opening the Web Station:

main menu

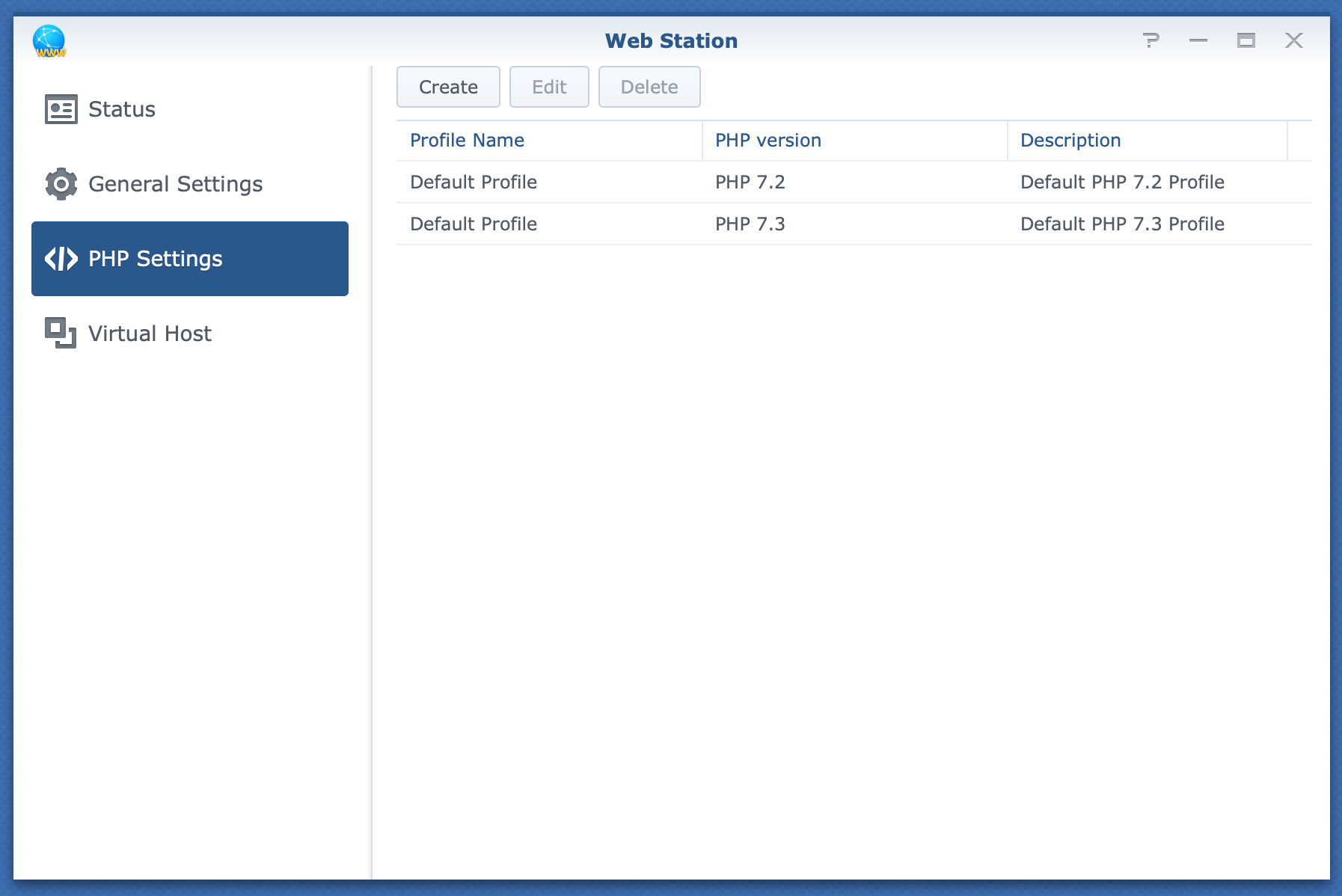

Check that you have a PHP 7.3 profile:

php settings

And then creating a VirtualHost (we use a port based in this example):

php settings

Settings choosen in the example:

Port: 7777 with HTTPS
Document root: /volume1/web/kimai2/public
HTTP backend server: nginx
PHP backend: PHP 7.3

Now switch to the console and find the directory where the config needs to be stored.

Either use ls -la /etc/nginx/conf.d/ and check which subdirectories exist or better: have a look at the file /etc/nginx/app.d/server.webstation-vhost.conf where all virtual hosts are listed.

Watch out for the line that starts with include:

server {

    listen      7777 ssl default_server;
    listen      [::]:7777 ssl default_server;

    server_name _;

    ...

    root    "/volume1/web/kimai2/public";

    ...

    include /usr/local/etc/nginx/conf.d/1d16b269-904e-41c9-bd23-cbdf761e305e/user.conf*;

}

Ok, we found the directory /usr/local/etc/nginx/conf.d/1d16b269-904e-41c9-bd23-cbdf761e305e/, go ahead and edit a new config file to store the webserver configuration for Kimai:

vim /usr/local/etc/nginx/conf.d/1d16b269-904e-41c9-bd23-cbdf761e305e/user.conf-kimai2

Add the following lines to it:

    index index.php;

    access_log off;
    log_not_found off;

    location ~ /\.ht {
        deny all;
    }

    location / {
        try_files $uri /index.php$is_args$args;
    }

    location ~ ^/index\.php(/|$) {
        fastcgi_pass unix:/run/php/php7.2-fpm.sock;
        fastcgi_split_path_info ^(.+\.php)(/.*)$;
        include fastcgi.conf;
        fastcgi_param PHP_ADMIN_VALUE "open_basedir=$document_root/..:/tmp/";
        internal;
    }

    location ~ \.php$ {
        return 404;
    }

Check the nginx config with:

sudo nginx -t

If you see the following lines:

nginx: the configuration file /etc/nginx/nginx.conf syntax is ok
nginx: configuration file /etc/nginx/nginx.conf test is successful

you can tell nginx to reload the configuration with:

sudo nginx -s reload

That’s it, Kimai should now run.

Fixing file permissions

The following commands must be run in the Kimai directory, here in /volume1/web/kimai2/.

They must be run as root user (e.g. by prefixing each line with sudo). Be extremely careful, a wrong command can destroy your Synology … you know: with great power comes great responsibility!

cd /volume1/web/kimai2/

sudo chown -R :http .
sudo chmod -R g+r .
sudo chmod -R g+rw var/
sudo chmod -R g+rw public/avatars/

Updating Kimai

Please cross-check the normal upgrade guide for more steps:

cd /volume1/web/kimai2/
git fetch --tags
git checkout 1.25.0
php73 composer install --no-dev --optimize-autoloader -n
php73 bin/console kimai:update
chown -R :http .

Important: Finally execute the version specific tasks from the UPGRADING guide.

Update without git

cd /volume1/web/
wget https://github.com/kevinpapst/kimai2/archive/refs/tags/1.25.0.zip
7z x
cp kimai2/.env kimai2-1.25.0/
cp -R kimai2/var/invoices kimai2-1.25.0/var/
cd kimai2-1.25.0/

Then download and install composer, followed by the installation:

php74 composer.phar install --no-dev --optimize-autoloader
php74 bin/console kimai:update

Now a) switch your virtual host to the new directory or b) change the directory names:

cd /volume1/web/
mv kimai2 kimai2-backup
mv kimai2-1.25.0 kimai2

Important: Finally execute the version specific tasks from the UPGRADING guide.

SSO with Synology Directory Server

See this discussion to find out more.

Prerequisite Synology Directory Server App installed on your NAS
Preparation: open Synology Directory Server App
- Domain Tab write down: Domain name, e.g. your.domain Domain NetBios name, e.g. your address of Domain Controller, e.g. dc.your.domain “DC” part of Distinguished name (DN), e.g. DC=your,DC=domain (everything after OU=Domain Controllers)
- Users & Computers Tab create user: Add - Username User Login name: kimai (can be freely chosen) Password: your-password Confirm Password: your-password Untick “Force this account to change password at next login” confirm next windows (it is sufficient if user just belongs to the group ‘domain users’

local.yaml create the file local.yaml or add the ‘ldap part’ to your local.yaml and upload it to kimai2/config/packages

 kimai:
     ldap:
         activate: true
         connection:
             host: "ldaps://dc.your.domain" <-- change to address of Domain Controller as recorded in first step)
             port: 636
             useSsl: true
             username: CN=kimai,CN=Users,DC=your,DC=domain <--- the created user, amend the DC information as recorded in the first step
             password: your-password <-- the password for the created user
             accountFilterFormat: (&(objectClass=Person)(sAMAccountName=%s))
             accountDomainName: your.domain <-- your domain name as recorded in first step
             accountDomainNameShort: your <-- Domain NetBios name as recorded in first step

         user:
             baseDn: DC=your,DC=domain <--- amend the DC information as recorded in the first step
             usernameAttribute: samaccountname
             filter: (&(objectClass=Person))
             attributesFilter: (objectClass=Person)
             attributes:
                 - { ldap_attr: samaccountname,  user_method: setUsername }
                 - { ldap_attr: mail, user_method: setEmail }
                 - { ldap_attr: displayname, user_method: setAlias }

         role:
             baseDn: DC=your,DC=domain <--- amend the DC information as recorded in the first step
             filter: (&(objectClass=group))
             groups:
                 - { ldap_value: Domain Admins, role: ROLE_SUPER_ADMIN }
                 - { ldap_value: management, role: ROLE_ADMIN } <-- assumes that you have created a Domain Group 'management' in your Active Directory App; if not, delete this line
                 - { ldap_value: Users, role: ROLE_USER }

nstallation SSH into your Synology NAS, navigate to your Kimai installation (probably volume1\web\kimai2) and run the following command:
```
php80 /usr/local/bin/composer require laminas/laminas-ldap --optimize-autoloader
```

Remark:

use the correct php version that you have installed, e.g. php80 or php74
change the path to composer if you have not created a link to your composer.phar under /usr/local/bin/

Troubleshooting

Allowed memory size issue

If you see an error like Error: Allowed memory size of 134217728 bytes exhausted (tried to allocate 32768 bytes) then you have to adjust the memory limit for the PHP command-line interface. PHP has two different settings for memory limit, depending on where you run it:

executed in web-context (you open a page in your browser) => the settings from DSM are used
executing scripts (like the installer) via SSH => settings from another config file are used

So when running the installer and running into a memory issue, you have to adjust the php.ini whose settings are used in SSH, e.g. the file /usr/local/etc/php74/php.ini is used for PHP 7.2. Search for the key memory_limit and set it to a high value, e.g. memory_limit=512M.

Read this discussion for more infos.

White page after changes to .env

If you are using a network share (or any Synology app) for downloading/editing/uploading the .env file, make sure that group permissions for the http group are preserved.

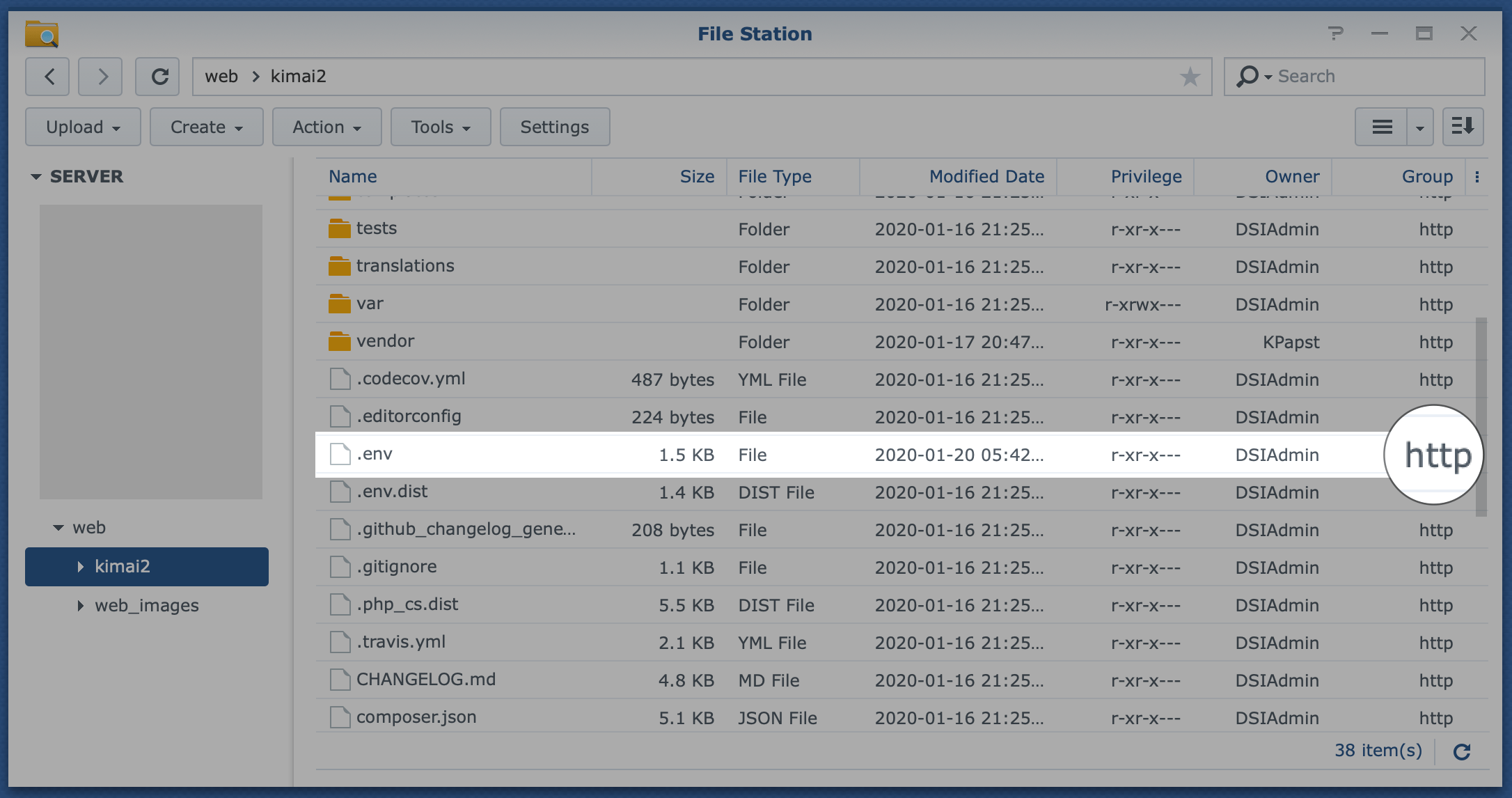

file permissions

You can change them using:

File station > change to kimai2 directory > Right click on .env > Properties.
