Use Keycloak as SAML identity provider for Kimai

Keycloak SAML

Kimai 1.30.0 1.30.11 (latest version)

Table of contents

Go back to general SAML configuration for Kimai.

SAML authentication with Keycloak accounts has proven to work with the following configurations.

Add a client for Kimai SAML

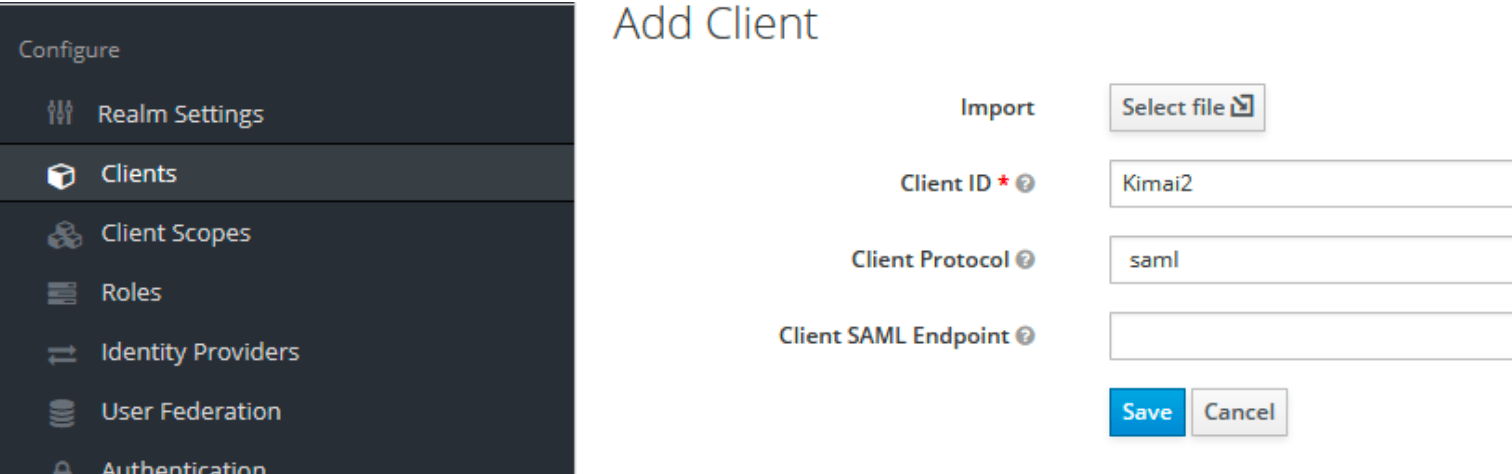

Add a client

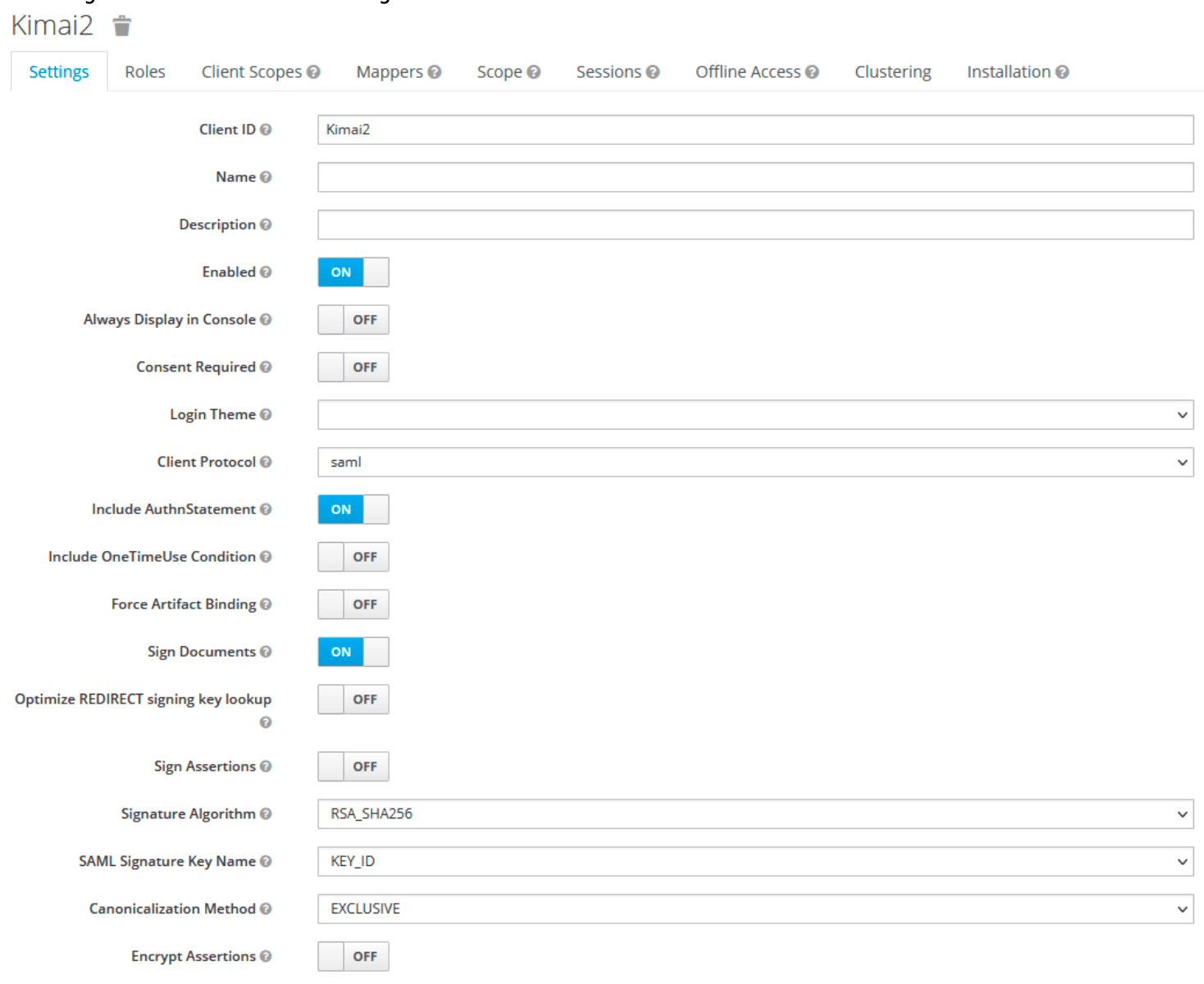

Configure the client

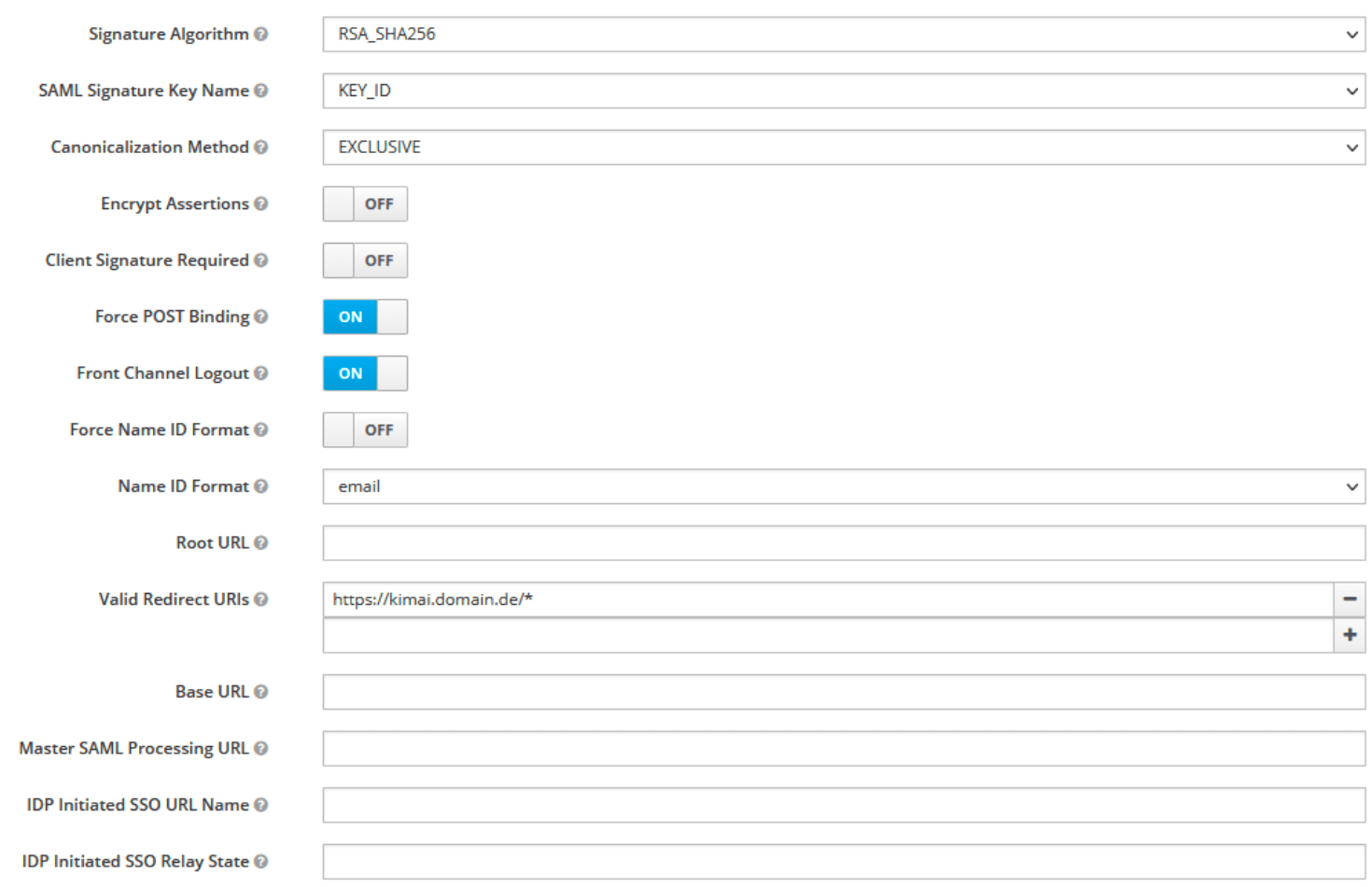

Deactivate *Client Signature Required* (1)
Deactivate *Client Signature Required* (2)

Create user attributes

Which will then be mapped on the Kimai user attributes:

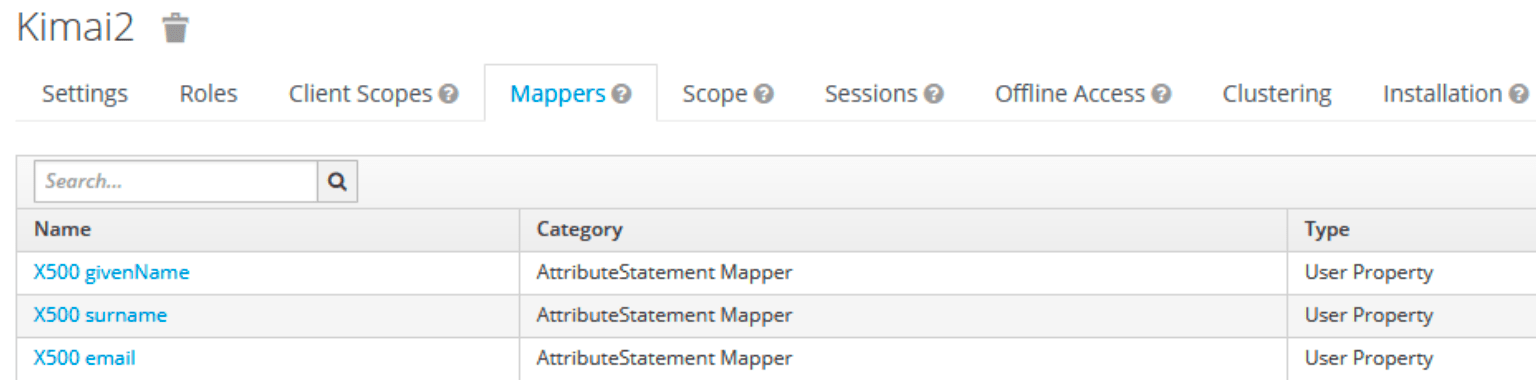

Kimai user attributes (listing)

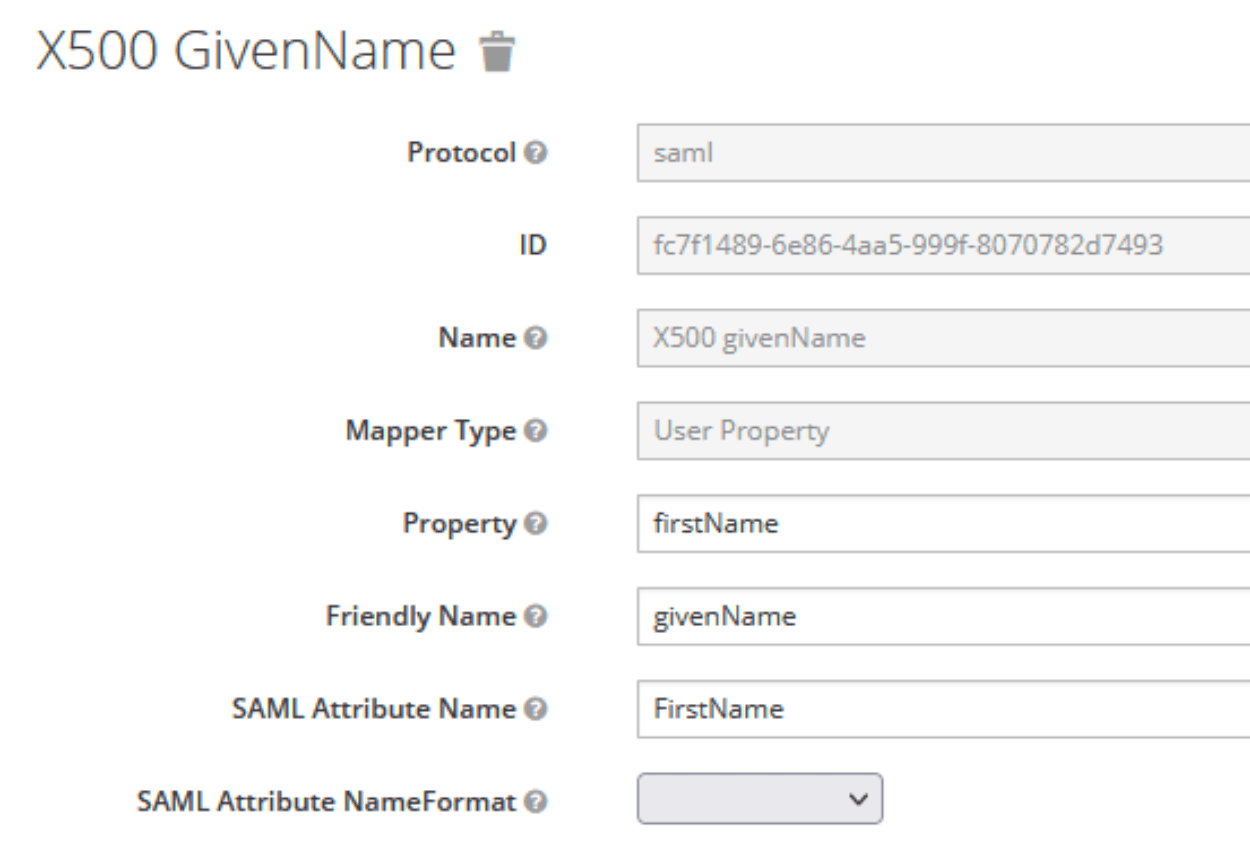

Kimai user attributes (X500 GivenName)

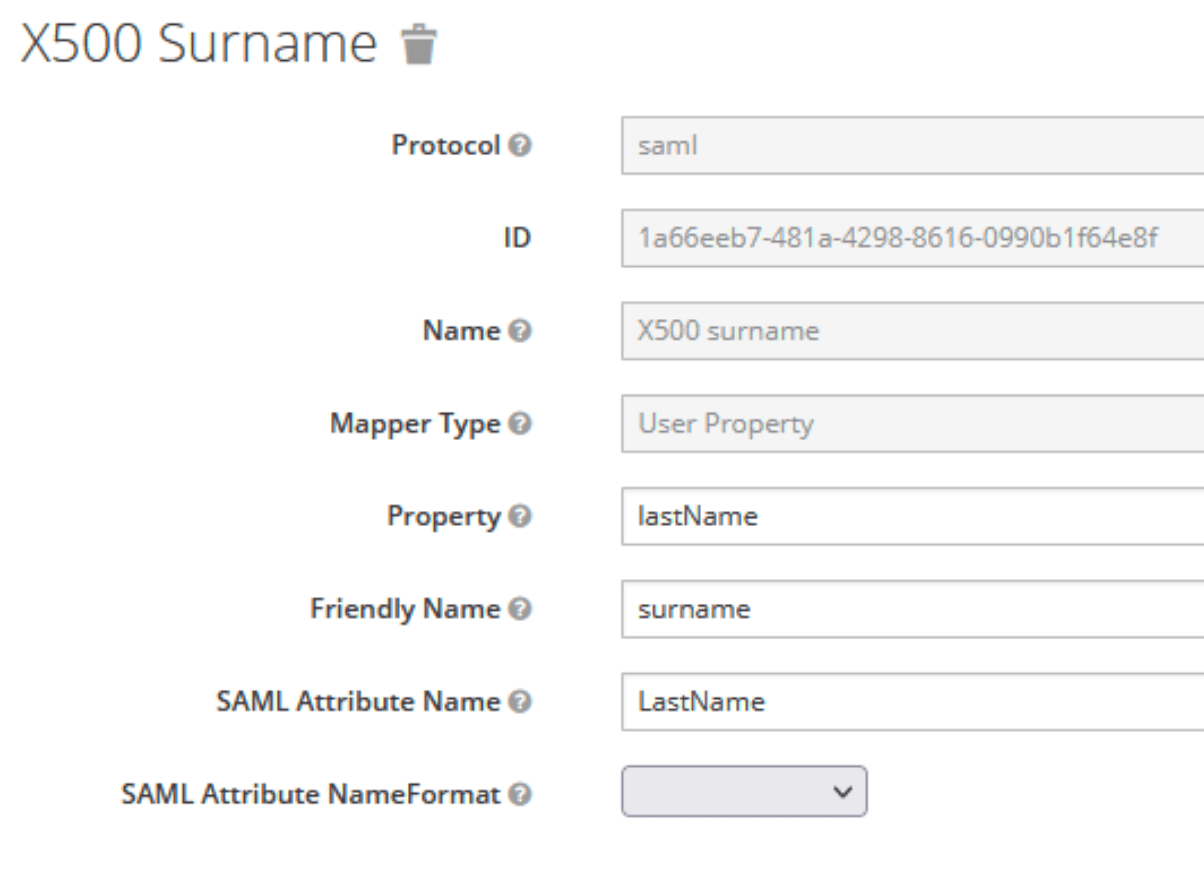

Kimai user attributes (X500 Surname)

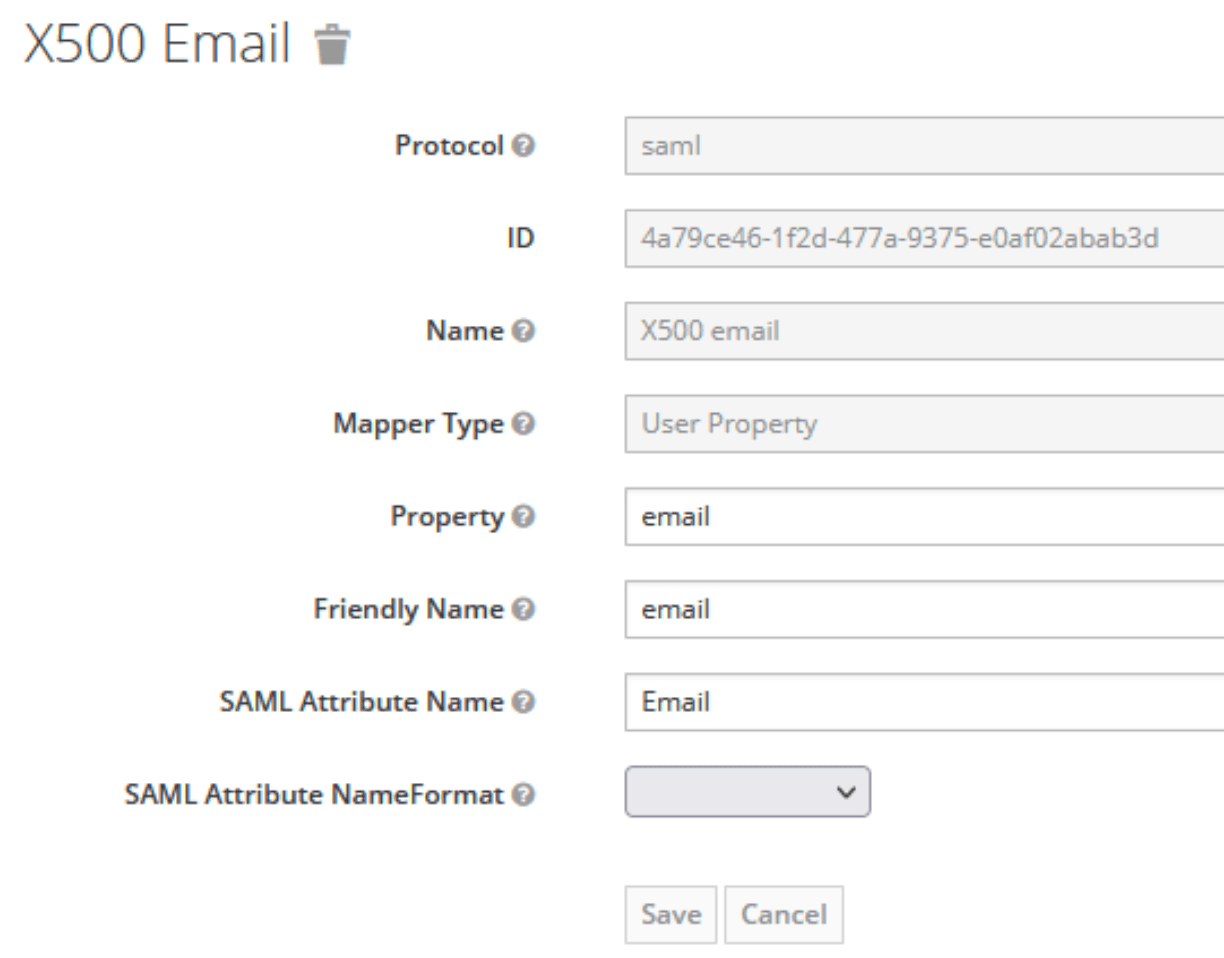

Kimai user attributes (X500 Email)

Adjust Client Scopes

  • Go to Configuration -> Client Scopes -> role_list
  • Select Tab “Mappers”, edit “role_list”
  • Set” Single Role Attribute” to “ON”

Configure local.yaml

And here is the matching Kimai configuration:

kimai:
    saml:
        activate: true
        title: Keycloak
        mapping:
            - { saml: $Email, kimai: email }
            - { saml: $FirstName $LastName, kimai: alias }
        roles:
            resetOnLogin: true
            attribute: Roles
            mapping:
                - { saml: Admins, kimai: ROLE_ADMIN }
                - { saml: Management, kimai: ROLE_TEAMLEAD }
        connection:
            # You SAML provider, here an example for Keycloak
            idp:
                entityId: 'https://keycloak.domain.de/auth/realms/Firmenrealm'
                singleSignOnService:
                    url: 'https://keycloak.domain.de/auth/realms/Firmenrealm/protocol/saml'
                    binding: 'urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect'
                #    url: 'https://127.0.0.1:8010/logout' binding: 'urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect'
                x509cert: 'Get your Keycloak certificate at Realm Settings --> Keys --> RS256 --> Certificate '
            # Your Kimai instance, replace https://127.0.0.1:8010 with your base URL
            sp:
                entityId: 'Kimai2'
                assertionConsumerService:
                    url: 'https://kimai.domain.de/auth/saml/acs'
                    binding: 'urn:oasis:names:tc:SAML:2.0:bindings:HTTP-POST'
                singleLogoutService:
                    url: 'https://kimai.domain.de/auth/saml/logout'
                    binding: 'urn:oasis:names:tc:SAML:2.0:bindings:HTTP-Redirect'
                #privateKey: ''
            # only set baseurl, if auto-detection doesn't work
            #baseurl: 'https://kimai.domain.de/auth/saml/'
            strict: true
            debug: true
            security:
                nameIdEncrypted: false
                authnRequestsSigned: false
                logoutRequestSigned: false
                logoutResponseSigned: false
                wantMessagesSigned: false
                wantAssertionsSigned: false
                wantNameIdEncrypted: false
                requestedAuthnContext: true
                signMetadata: false
                wantXMLValidation: true
                signatureAlgorithm: 'http://www.w3.org/2001/04/xmldsig-more#rsa-sha256'
                digestAlgorithm: 'http://www.w3.org/2001/04/xmlenc#sha256'
            contactPerson:
                technical:
                    givenName: 'Kimai Admin'
                    emailAddress: 'kimai-tech@example.com'
                support:
                    givenName: 'Kimai Support'
                    emailAddress: 'kimai-support@example.com'
            organization:
                en:
                    name: 'Kimai'
                    displayname: 'Kimai'
                    url: 'https://www.kimai.org'

You should now be able to test the Login by visiting https://timetracking.example.com/ and clicking on the Keycloak title of the SAML method, you defined earlier.
